Description
Product Overview

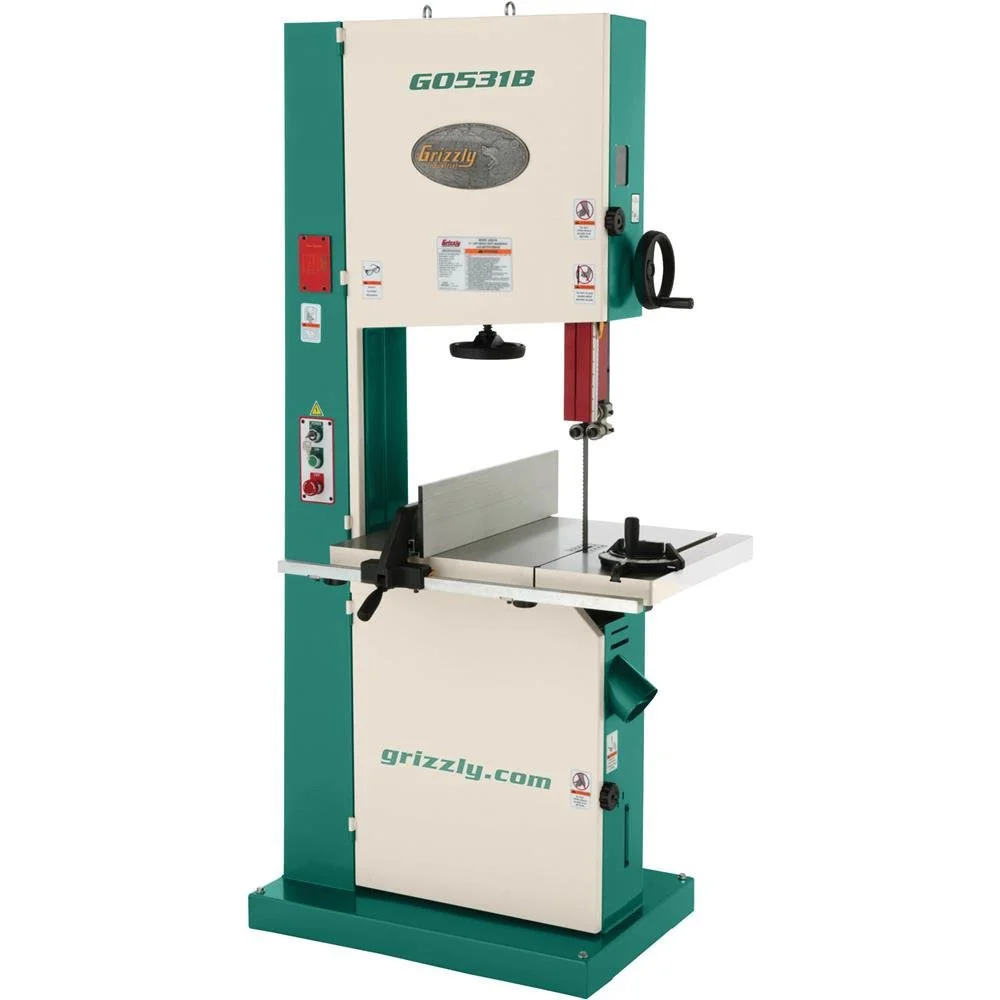

A large cutting capacity bandsaw built for industrial production. The G0531B 21″ Industrial Bandsaw offers a 5 HP totally enclosed, fan-cooled (TEFC) motor designed for all-day operation. The extra-large 20-3/4″ x 29-1/2″ table is made to support large workpieces up to 14″ x 20″.
Product Details & Specifications
| It features rack-and-pinion table tilt for ease of use and precision adjustability. Without the rack-and-pinion, you would have to muscle the large cast-iron table into a position, and then try to hold it in place while you tighten the locks-not an easy task. | |
| The cast-iron trunnion of the G0531B gives the table a solid, robust support system, allowing it to resist flexing and twisting when heavy workpieces are set on the table, especially on the outside ends of the table around the blade slot. | |
| Another added benefit of this design is the additional stability and support the rack post provides to the back-end of the table. As an industrial machine, the G0531B does not come with a plug or wire. The T28429 30 Amp 250V NEMA L6-30 Single-Phase Twist Lock Plug can be purchased separately. | |
| SPECIFICATIONS: Motor | 5 HP, 230V, single-phase, 22A Throat (max. width left of blade): 20″ Resaw capacity: 14-1/2″ Blade speed: 4600 FPM Blade size: 164″–165-1/2″ Table size: 29-1/2″ x 20-3/4″ x 1-1/8″ Table tilt: 5° left, 45° right Floor-to-table height: 35-1/2″ Overall dimensions: 39-1/2″ W x 32-1/4″ D x 78″ H Approximate shipping weight: 684 lbs |
|---|---|

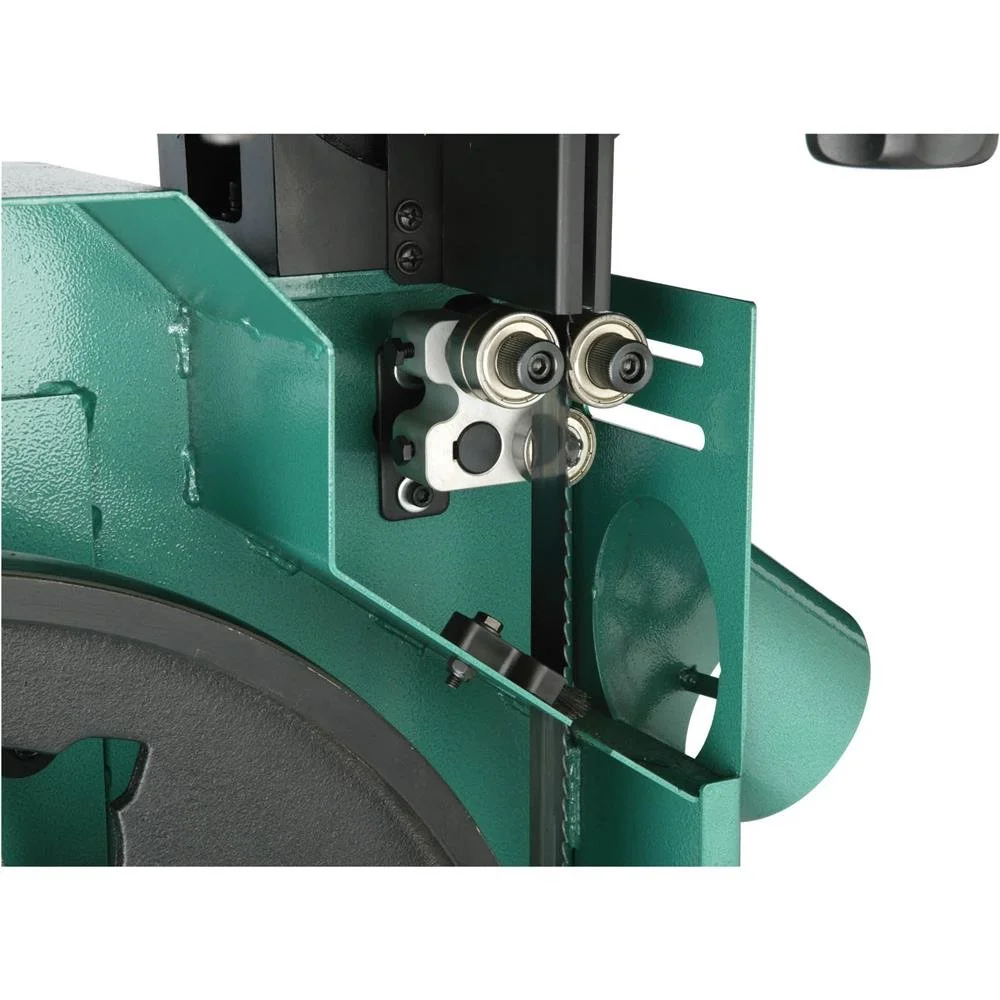

| FEATURES | Motor stops in under 3 seconds after switch is turned off Heavy-duty cast-iron fence with extruded aluminum resaw fence Quick-release blade tensioning and indicator Blade tracking window Ball-bearing blade guides Rack-and-pinion upper guide adjustment Height adjustment scale Micro-adjusting rack-and-pinion table tilt Computer-balanced cast-iron wheels with rubber tires Key lock power switch |
