Description

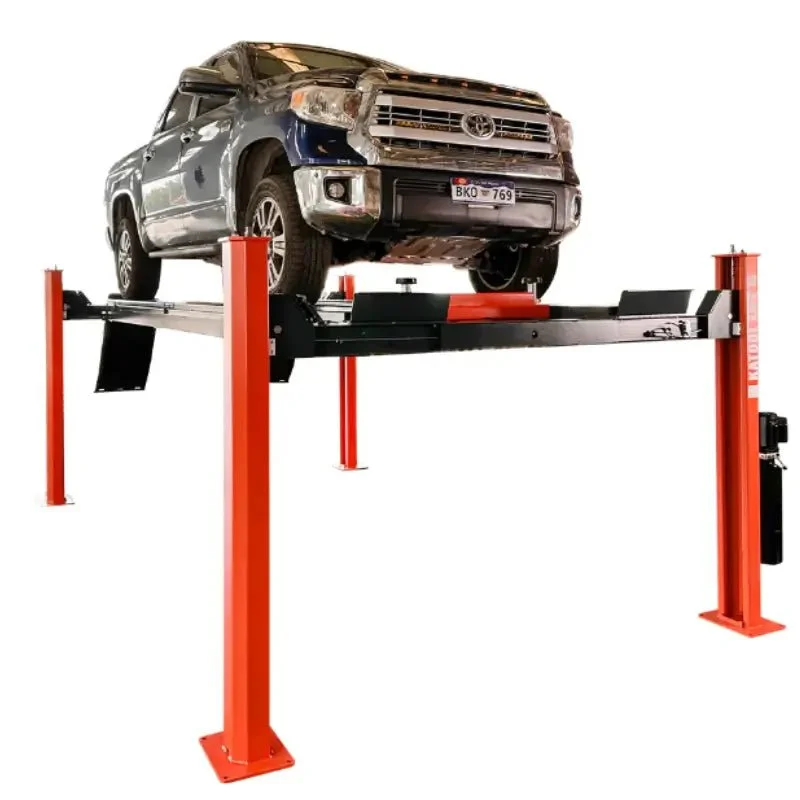

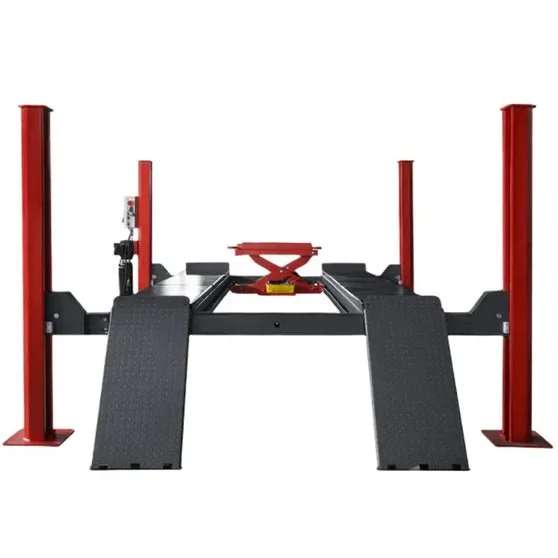

KT-4H150, 4 Post Parking Lift by Katool
Juggling jacks and stands for complex car projects is inefficient and potentially unsafe. The Katool KT-4H150 Parking Lift is here to revolutionize your car care routine. With a staggering 15,000-lb lifting capacity and CE-certified design, the KT-4H150 tackles even the toughest jobs with ease. Safety is prioritized with multiple locking points, a single-point safety release, and a non-slip platform which is good for conducting repairs on rainy days.
Convenience is built-in with a reversible motor column, and an included Rolling Jack. This all-in-one solution streamlines your workflow and maximizes your productivity. Stop struggling with makeshift solutions. Invest in the KT-4H150 today and experience the difference! Enjoy a complete car care solution with unmatched safety, strength, and convenience.
Katool 15,000lb Lift Specifications:
- Lifting Capacity: 15,000 lb
- Max Lifting Height: 75″
- Height of Posts: 86″
- Overall Width: 136″
- Length (w/ ramps): 245″
- Length (w/o ramps): 208″
- Inside Columns: 118″
- Inside Runways: 43″
- Min. Runway Height: 9″
- Pad: 14.56″ x 17.12″
- Lock Position: Every 4.7″ (12 total)
- Power: 220V/60HZ/1PH
- Oil: AW-46 or AW-32 (colder climates)
- Pallet Dimensions:
- Lift: 4057 lbs – 200x27x33 (inches)
- Pump: 441 lbs – 40x24x15 (inches)
- 2x Ramps : 66 lbs – 47x20x12 (inches)
- Rolling Jack：330lbs – 46x25x13 (inches)
4H150 Special Features:
-
15,000 LB Capacity: Perfect for larger trucks, vans, duallys, and heavy-duty work vehicles.
-
CE Certified: Tested to 115% dynamic and 150% static load standards for industry-grade safety and durability.
-
Rolling Jack Included: Pneumatic-over-hydraulic jack tray allows for wheel service above the runways. Requires external air source.
-
Manual Safety Release: Single-point manual release engages 4 mechanical locking positions for added peace of mind.
-
Redundant Safety Locks: Each post includes primary and secondary locking systems for built-in backup protection.
-
Flexible Power Column Placement: Mount the power-side post in the front, rear, or either side—whichever fits your shop best.
-
Non-Skid Diamond Plate Runways: Textured platforms keep tires from slipping during approach and lift.
-
Heavy-Duty Cable & Pulleys: 7/16″ thick cables and steel pulleys ensure smooth, long-lasting operation.
-
Permanent Setup: This model does not support caster kits and is intended for fixed installation.
-
Updated Color Scheme: Now available in Katool’s new orange and gray finish for a bold, modern shop look.
-
Optional Add-Ons: Turntables for alignment sold separately.
-
Katool Warranty: One-year (12 months) warranty on all parts and against product defects, free of charge. Vehicle lifts include an additional three-year (36 months) warranty on all structural components.
