Designed to compete directly against expensive high-end European bandsaws. After several years of research and development, we put together this amazing package that is a perfect blend of precision and muscle.
Product Details & Specifications
| The G0636X 17″ 5 HP Ultimate Bandsaw has all the features (and more) of comparable saws, but weighs nearly twice as much, meaning much more rigidity and vibration-absorbing mass than other 17″ bandsaws. | |
| The 5 HP motor powers through wood at a maximum 16″ cutting capacity and the 16-1/2″ throat is big enough for most applications. The G0636X has an extra-wide 21″ x 25-1/2″ cast-iron table that can tilt from 5° left to 45° right. | |

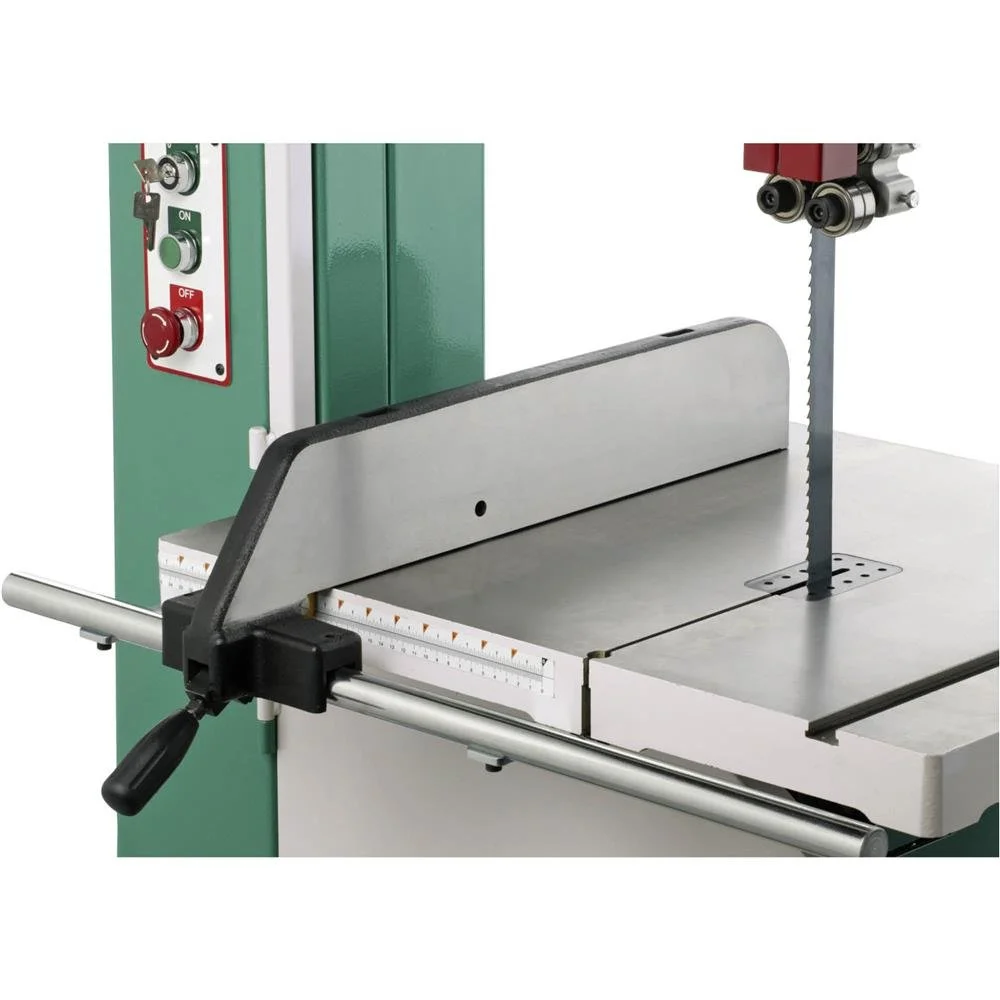

| The cast-iron fence includes an extruded-aluminum resaw fence that attaches quickly and supports tall stock exceptionally well. For a full range replacement and resaw blades for the G0636X, shop here. | |
| The G0636X manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your bandsaw. | |
| SPECIFICATIONS: Motor | 5 HP, 230V, single-phase, 22A Throat (max. width left of blade): 16-1/2″ Resaw capacity: 16″ Resaw fence size: 6″ H x 23″ L Table size: 21″ x 25-1/2″ Table tilt: 5° left, 45° right |
|---|---|
| Floor-to-table height: 35-1/2″ Blade size: 160″ | 162″ (1/8″–1-3/8″ wide) Blade speed: |
| 4500 FPM Footprint | 29-1/2″ x 23-1/2″ Overall dimensions: 35-1/4″ W x 33-3/4″ D x 78-1/2″ H Approximate shipping weight: 784 lbs |
| FEATURES | Foot brake stop Two 4″ dust ports Precision-ground cast-iron table Micro-adjusting rack-and-pinion table tilt Rack-and-pinion upper guide adjustment Blade tension indicator Blade tracking window Height scale measurement Deluxe cast-iron fence with extruded aluminum resaw fence Fence adjusts for blade lead Fence includes scale and magnifying window Quick-release blade tensioning Powder-coated finish Fully balanced cast-iron wheels with urethane tires Blade guides: dual ball bearing Sealed and permanently lubricated bearing 1″ 6-TPI hook blade and miter gauge 1-year limited warranty Note: The G0636X does not come with a plug. The recommended plug type is L6-30 |
